THETA MANUAL

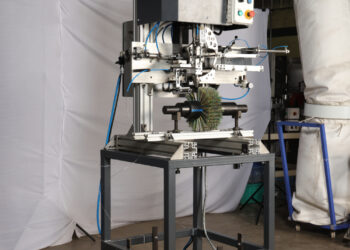

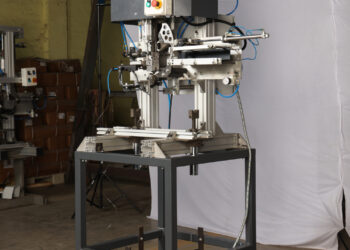

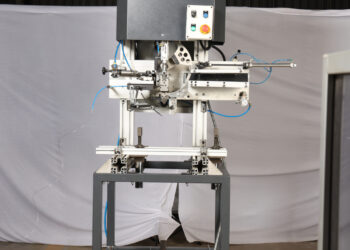

VERTICAL TUFTING MACHINE WITH 1 FILLING TOOL FOR THE PRODUCTION OF BRUSHES WITH PRE-DRILLED BLOCKS.
The machine operator manually positions the pre-drilled block in the filling area, using a mechanical pointer, which allows to locate the tuft-hole that the filling tool will fill. The brush holder consists of a simple plate for flat brushes and complementary equipment for the production of cylindrical brushes and disc brushes. The filling operation is enabled by a foot-pedal.

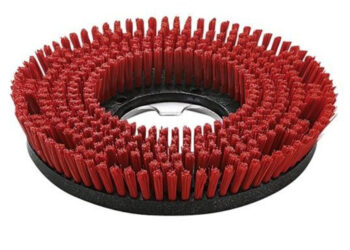

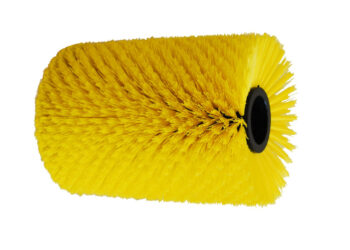

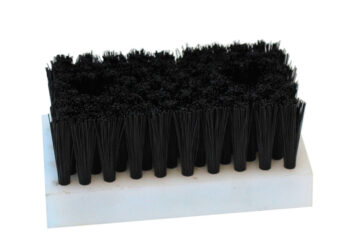

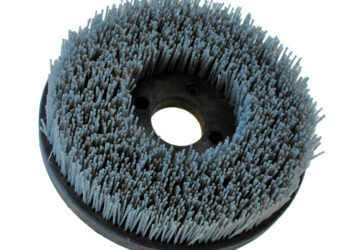

BRUSH MODELS
TECHNICAL DATA
| Filling tools | 1 |
| Drills | – |
| Stroke (mm) | 85 |
| Speed (tufts/minute) | 50 |
| Max fiber length (mm) | 300 |
| Min fiber length (mm) | 40 |
| Max filling tool (mm) | 7.5 |
| Min filling tool (mm) | 2.5 |
| Power consumption (kW) | 0.2 |
| Air consumption (nL/min) | 350 |
| Weight (kg) | 150 |
| Dimensions (mm) | L – 1230
W – 850 H – 1460 |
