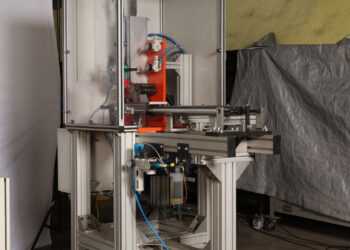

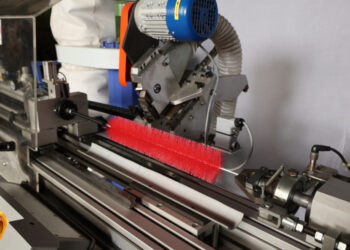

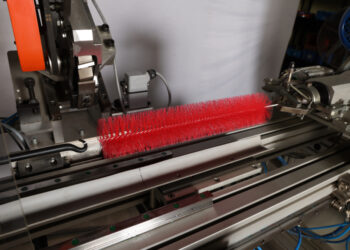

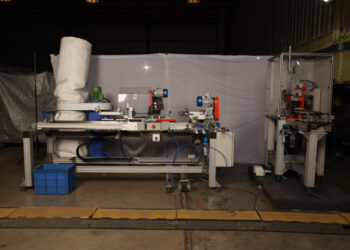

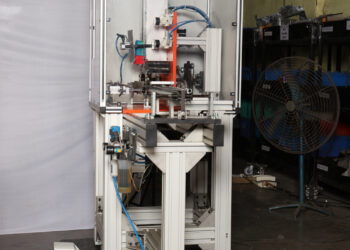

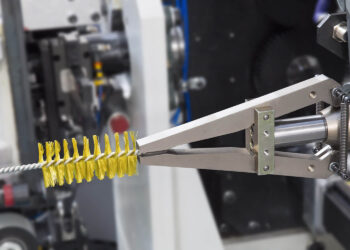

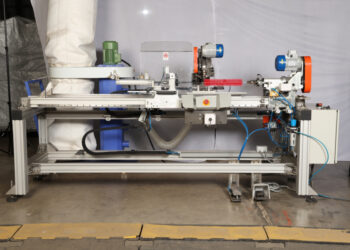

SIGMA Twist Brush Machine + PSI Filament Setter
TWISTING MACHINE FOR THE PRODUCTION OF TWISTED BRUSHES
- SIGMA can produce loop-end, closed-end and cut-end (open) twisted-in-wire brushes.
- SIGMA is composed of 1 clamping unit that twists the stem wire, one hook unit (or second clamping unit, optional) that holds the stem wire under tension and 1 trimming unit, to trim the fibers.
- SIGMA is usually combined with PSI Filament Setter, which prepares the tufts of fiber to be manually inserted in-between the two stem wires.
- SIGMA can work with synthetic, natural and metallic fibers, as well as metal stem wire and plasticised wire.
HIGHLIGHTS
The machine is ideal for Bottle Brush, Industrial Brush, Twist Brush with Metal Wires, Twist Brush with Natural Fiber and with Ring or without Ring.
Technical Data
| Brush Length upto (mm) | 600 |
| Brush Diameter Range (mm) | 30…..200 |
| Max. Wire Diameter (mm) | 4.0 |
| Min. Wire Diameter (mm) | 0.7 |
| Power Consumption (kW) | 0.2 |
| Air Consumption (nL/min) | 40 |
| Weight (kg) | 250 |
| Dimensions (mm) | L-1500
W-800 H-2100 |
