SEMI-AUTOMATIC MACHINE FOR THE ASSEMBLY OF MOPS MADE OF BOTH COTTON AND SYNTHETIC MATERIAL.
OMEGA 15 is an easy to operate machine for manufacturing mops of various sizes and shapes, using spools racks of both cotton yarns and synthetic material. An operator feeds the machine with plastic or metal sockets and staples and enables the assembly cycle, then the mop is pulled towards unloading area. OMEGA 15 automatically cuts the mops at desired lengths and ejects them.
HIGHLIGHTS
- Spool rack to hold up to 60 cotton spools destined to feed the machine.

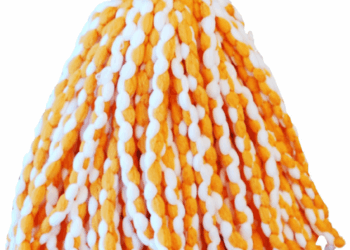

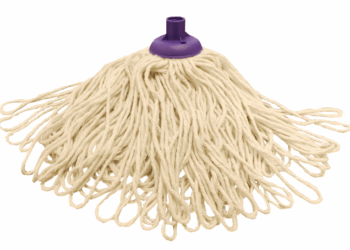

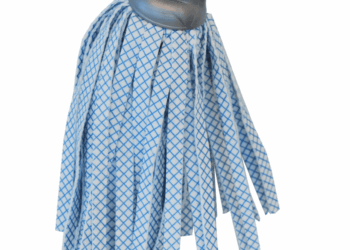

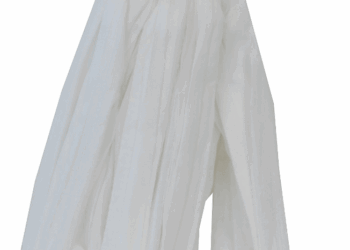

- Cotton or synthetic mops.
- Variable mop length.

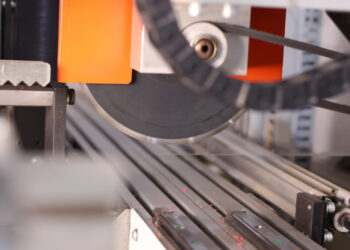

- Automatic cutting.
- Automatic unloading.
TECHNICAL DATA
| Minimum mop length (mm) | 340 |
| Maximum mop length (mm) | 1200 |
| Maximum socket width (mm) | 200 (8 inches) |
| Output (mops/ hour) @500mm mop length | 300 |
| Power consumption (kW) | 0.5 |
| Air consumption | 12.3 cfm @ 5 bar |
| Weight (kg) | 750 |
| Dimensions (mm) | L – 3200 W – 1500 H – 1900 |
